NexCore is with a durable CDF core (Compact Density Fiberboard) made of specially treated wood fibel and surfaced with decorative paper impregnated in melamine resins. With a density of 1050ka/m% Compact Fiberboard equips similar technical properties of wel-known Compact Grade thick HPL, making it suitable for moisture and humidity environment or in applications requiring resistance in impact.

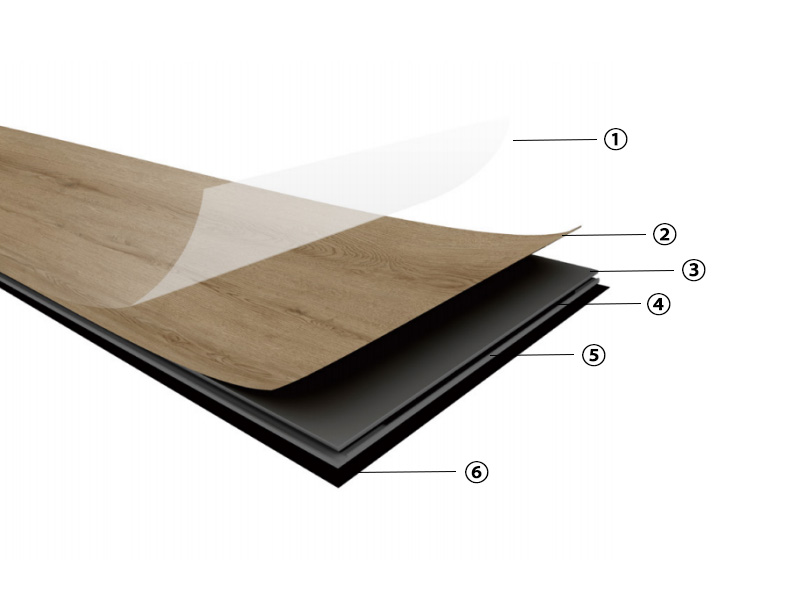

What Makes NexCore?
1. SurfaceGuard'technology for lifetime protection
Liquid overlay adds an extra resistance to wear, scratch and stain resistance than the industry-leading rigid coatings. SurfaceGuard adopts ultimate strong surfaces with the abrasion rating of AC3, AC4 and AC5.
2. Decor Paper
Distinctive design patterns with various colors and styles.
3. CDF Core
Black-colored CDF core with 5mm thickness which is slim but with outstanding physical properties, moisture-proof, fire-resistant and extremely stable closing to inorganic minera composite core.
4. TapFit'5G Click system
PTAPFIT locking system makes installation effortless. Just a tap on the end with no mess and no hassle
5. Balance Paper
PProviding balance on dimensional stability and moisture-resistant.
6. Underlavment
PIXPE or Cork underlayment for sound insulation and soft underfoot feeling.
Extremely excellent performance for anywhere to go:
＞＞ 4inLook concept for one-stop beauty
＞＞ SurfaceGuard provides lifetime protection
＞＞ RoundEdge bevel for real wood looking
＞＞ Large install without transition
＞＞ TapFit 5G Click for easiest and fastest on-site job
Thanks to its slim but extra outstanding physical properties, NexCore creates endless possibility for new generation flo oring design and development.
KITCHENS |
BATHROOMS |
LAUNDRY ROOMS |
OFFICES |
RESTAURANTS |
SHOPS |
 |  |  |  |
Technical Features
NexCore refers to super dimensional stability and moisture-proof core with SurfaceGuard technology.
The unigue structure makes it an ideal choice for both residential and commercial applications.
How does CDF (Compact Fiberboard) compared to HDF?
The high density of CDF allows it to be extremely robust and stable, ideally for heavy loading places. Com-pact Fiberboard is more widely used in interior environment, both horizontal and vertical building structure where aesthetics and durability are highly requested.
Item | CDF | HDF |
Density | ≥1000 kgs/m3 | Density |
Thickness Range | 5-8mm | 8-15mm |
Water Swelling | <3.6% | <18% |
Formaldehyde Emission | CARB P2 | EI/ CARB P2 |
Reaction to Fire | Bs1-d0 | Cfl-sl |
Flatness | ±0.2mm | ±0.5mm |
Internal Bond Strength | >3.0N/mm2 | >1.0N/mm2 |
Flexural Strength | >6000N/mm2 | >3500N/mm2 |
 | PVC-free An eco-friendly PC-free wooden ground solution with a waterproof feature. How much you love the envi-ronment.how much we care apout you. |
 | Waterproof performance CDF is proud of its moisture-proof quality, a feature that makes it stand out from other wood-based panels. Furthermore, our watertight click system and high polymer waterproof sealer on whole edges make NexCore waterproof to resist any life spills and wet cleanings like steam mopping. |
 | Install over 6000ft2/600m2 without transitions NexCore is extra stoble to heot. temperoture variotions, which makes it can be installed in large areas without transitions, 20M in width by 30M in length direction. |
Certifications &Test Results
Description | Standard | Symbol | Requirements | Results |
CE Certification | ENI4041 |
| Refer to Standard | Passes Requirements |
EPA(Core) |
| Refer to Standard | Passes Requirements | |
VOC | FloorSoore |
| Passes Requirements | |
Classification (Level of Use) | EN 18511 EN ISO10874 |
| Commercial-Heavy (Class 33) | Passes Requirements |
Reaction to Fire | EN1350-1 |
| BsI-d0 | |
REACH | Ortho-phalates |
| Not Detected | |
Lead/Metals | N/A | Not Detected | ||
Benzene/xylene | N/A | Not Detected | ||
Tributyltin | N/A | Not Detected | ||
PCP (pentachlorophenol) | N/A | Not Detected | ||
Thickness Swell | NALFA LFOI |
| Heavy Commercicl ≤12% | Mean 3.6% |
Dimensional stabbiity-humidity | ASTM F2199-09 |
| ≤0.35% | Passes Requirements |
Dimensional stabbiity-temp | EN ISO 23999 |
| ≤0.30% | Passes Requirements |
Resistance to Staining | ASTM F925 |
| Passes Requirements | |
Castor chair Resistance | EN 425 NALFA LF O-201 SECTION 3.9 |
| After 25000 cycles | No disturbance to the surface; No delamination, cracks or visible damages |
Locking strength | EN16511 ISO 24334 |
| Long side ≥ 1.0kN/m Short Side ≥ 1.5kN/m | Passes Requirements |
Slip Resistance AMD Dry Condition AMD Wet Condition | ASTM D2394-2011 ASTM D2394-201 |
| Coefficient .59 (Static): .42 (Slide) Coefficient .59 (Static); .49 (Slide) |
NEXCORE - WATERPROOF COMPACT FLOORING
With the dedication to the flooring industry and the vision of becoming a century enterprise, NEWGOOD never stops pursuing the best.
We value your trust, prioritize your needs and manufacture the best flooring, only for making you stand out from the competition.
