Dry Back - P7227

1. UV Coating: protects the product and enables easy cleaning and care
2. Wear layer: guarantee very high durability and is the basis for the classification in the corresponding application areas
3. Decor film: gives the product a unique design
4. Base layer: provides elasticity and stability
5. Backing: helps with balance and optimal installation due

Inquire Now

Category:Dry Back

Product Detail

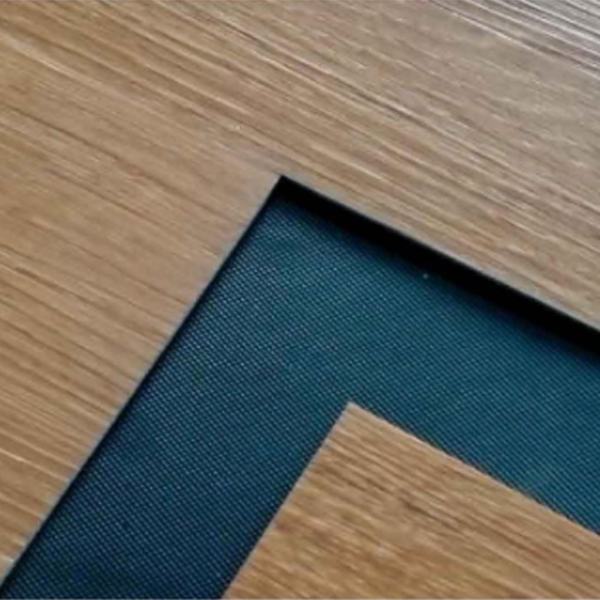

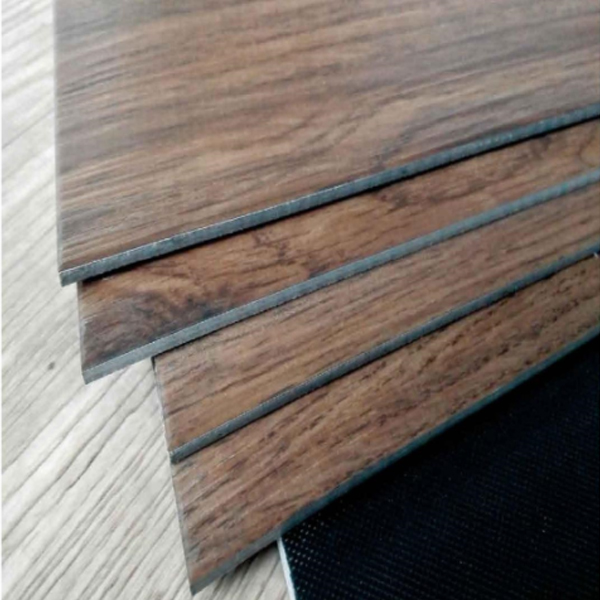

Dry Back Vinyl Floor

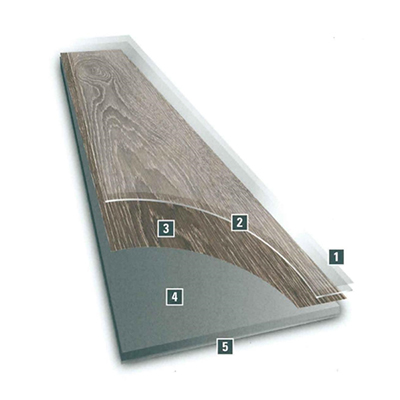

1. UV Coating: protects the product and enables easy cleaning and care

2. Wear layer: guarantee very high durability and is the basisfor the classification in the corresponding application areas

3. Decor film: gives the product a unique design

4. Base layer: provides elasticity and stability

5. Backing: helps with balance and optimal installation due

Product Specifications
Size	Thinckness	Wearlayer	Option
914.1×152.4mm	2.0mm-4.0mm	0.1mm-0.7mm	UV-matt finish Micro bevel edge
1227×157mm
1221×184.15mm
609.6×304.8mm
457.2×457.2mm

Performace
Item	Standard	Result
Wear behaviour	EN660-2	Group T
Fire behaviour	EN13501-1	Bfl-s1=B1
Anty slip	DIN51130	R9
Slip resistant	EN13893	category DS
Dimension Stability	EN434	0.05% cross
Light fast	DIN EN ISO 105-B02	≥6
Warm-water heating system	EN434	Pass
Chemical resistant	EN423	Pass
Heavy metal	REACH	Pass
Castor wheel traffic	EN425	classif.W
Antistatic preperties	EN1815	≤ 2kV
Footfall sound absorption	EN140-8	approx. 7 db


Abrasion Resistance


Strain Resistance


Dimension Stability


Cigarette Resistant


Resistant Chemical


Class 24 Domestic General


Class 34 Commercial General


Class 42 Industrial General

Packing Details
Vinyl floor - Click System Series
Size	Thickness	pieces/box	boxes/pallet	pallets/20t	m²/box	m²/pallet	m²/2Oft
930x150	4.0mm	18	56	20	2.511	140.61	2812.32
930x150	5.0mm	12	56	20	1.674	93.74	1874.88
1220x150	4.0mm	12	60	20	2.196	131.76	2635.2
1220x150	5.0mm	10	60	20	1.83	109.8	2196
1220x180	4.0mm	12	50	20	2.635	131.76	2635.2
1220x180	5.0mm	10	50	20	2.196	109.8	2196
604x300	4.0mm	13	48	20	2.355	113.06	2261.37
604x300	5.0mm	11	48	20	1.993	95.67	1913.47
Vinyl floor - Loose Lay series
1227x156	5.0mm	10	60	20	1.914	114.84	2296.94
1227x156	6.0mm	8	60	20	1.531	91.87	1837.55
1227x184	5.0mm	10	50	20	2.257	112.88	2257.68
1227x184	6.0mm	8	50	20	1.806	90.31	1806.14
609.6x304.8	5.0mm	11	54	20	2.043	110.36	2207.37
609.6x304.8	6.0mm	9	54	20	1.672	90.3	1806.03
Vinyl fioor - Dry Back series
914.4x152.4	2.0mm	36	56	20	5.017	280.94	5618.77
	2.5mm	30	56	20	4.181	234.11	4682.31
	3.0mm	24	56	20	3.345	187.29	3745.85
1221x184.15	2.0mm	24	50	20	5.396	269.81	5396.33
	2.5mm	20	50	20	4.496	224.84	4496.94
	3.0mm	16	50	20	3.597	179.87	3597.55
609.6x304.8	2.0mm	25	48	20	4.645	222.96	4459.34
	2.5mm	20	48	20	3.716	178.37	3567.47
	3.0mm	16	48	20	2.972	142.69	2853.98
457.2x457.2	2.0mm	25	40	20	5.225	209.03	4180.63
	2.5mm	20	40	20	4.18	167.22	3344.5
	3.0mm	16	40	20	3.344	133.78	2675.6
WPC vinyl Floor
1218x178	5.5mm	13	65	20	2.818	183.19	3663.98
	6.0mm	12	65	20	2.601	169.1	3382.14
	6.5mm	11	65	20	2.384	155.01	3100.29
	7.0mm	10	65	20	2.168	140.92	2818.45
	7.5mm	9	65	20	1.951	126.83	2536.6
	8.0mm	9	65	20	1.951	126.83	2536.6
1218x146	5.5mm	13	78	20	2.311	180.31	3606.35
	6.0mm	12	78	20	2.133	166.44	3328.94
	6.5mm	11	78	20	1.956	152.57	3051.52
	7.0mm	10	78	20	1.778	138.7	2774.11
	7.5mm	9	78	20	1.6	124.83	2496.7
	8.0mm	9	78	20	1.6	124.83	2496.7
